Sensit Series
The Sensit Series contains the world smallest ready-to-go potentiostats available on the market. The Sensit Smart can be directly inserted in a smartphone or tablet and controlled via the Android app PStouch. The Sensit BT connects via Bluetooth to your smartphone or tablet and can be controlled via the Android app PStouch. You can use the USB-C Female to USB-A cable to connect the Sensit Series to a classic USB port on your PC and control via our PC software PSTrace.

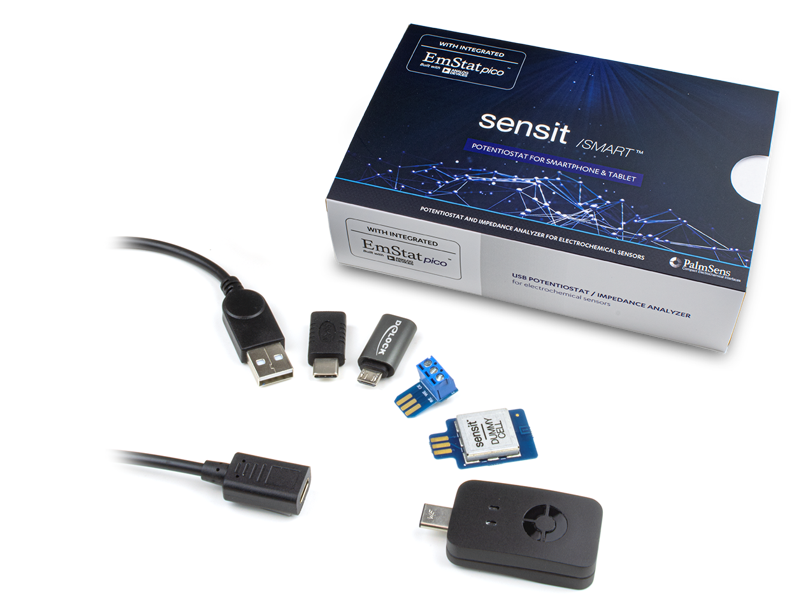

The Sensit Smart comes with:
- Dummy Cell (SPE version)
- SPE to screw-terminal adapter
- USB-C Female to USB-A cable
- USB-C Female to Micro USB adapter
- USB-C port protector
- PSTrace software for Windows (activation code for my.palmsens.com)
- PStouch app for Android (find it in the Google Play Store)
Techniques available with PSTrace and PSTouch Software (included with the instrument):
- Linear Sweep Voltammetry
- Cyclic Voltammetry
- Square Wave Voltammetry
- Differential Pulse Voltammetry
- Normal Pulse Voltammetry
- Chronoamperometry
- Pulsed Amperometric Detection
- Open Circuit Potentiometry
- MultiStep Amperometry
- Scanning or fixed frequency mode EIS
Sensit Smart Potentiostat for Smartphone, Tablet and PC
| Part Number | Description |
| PALM-SENSIT-SMART | Sensit Smart |
| PALM-SENSIT-BT-SNS | Sensit Bluetooth Sensor |
| PALM-SENSIT-BT-SPE | Sensit Bluetooth Screen Printed Electrode |
Other Accessories
The Sensit Smart works in three different modes;
Low Speed mode: for scan rates up to 1 V/s or a bandwidth of 100 Hz.
High Speed mode: for high scan rates and frequencies.
Max Range mode: a combination of the Low and High Speed modes for optimal dynamic dc-potential range
| General | Low Speed Mode | High Speed Mode | Max Range Mode |
| Full DC-potential range | -1.2V to +2 V | -1.7 to +2 V | -1.7 to +2 V |
| Dynamic DC-potential range 1 | 2.2 V | 1.2 V | 2.6 V |
| Compliance voltage | -2.0 V to +2.3 V | -2.0 V to +2.3 V | -2.0 V to +2.3 V |
| Maximum current | ±3 mA | ±3 mA | ±3 mA |
| Max. acquisition rate (datapoints/s) | 100 | 1000 | 100 |
| Supports FRA/EIS | No | Yes | No |
| Potentiostat (controlled Potential Mode) | Low Speed Mode |
High Speed Mode |
Max Range Mode |
| Applied DC-potential resolution | 537 µV |
395 µV |
932 µV |
| Applied DC-potential resolution | < 0.2% |
< 0.5% |
< 0.5% |
| Available current ranges |
100 nA, 2 uA, 4 uA, 8 uA,16 uA, 32 uA,63 uA, 125 uA, 250 uA, 500 uA, 1 mA, 5 mA |
100 nA, 1 uA, 6 uA, 13 uA, 25 uA, 50 uA, 100 uA, 200 uA, 1 mA, 5 mA |
100 nA, 1 uA, 6 uA, 13 uA, 25 uA, 50 uA, 200 uA, 1 mA, 5 mA |
| Measured current resolution |
0.006% of selected current range (5.5 pA on 100 nA range) |
||
| Measured potential resolution (for OCP) | 56 µV | ||
FRA/EIS (impedance measurements)
| Frequency range | 0.016 Hz to 200 kHz |
| AC-amplitude range | 1 mV to 0.25 V rms, or 0.708 V peak-peak |
